Winsun boasts a professional technical team led by doctors and masters. The core members have extensive experience in the field of aramid materials. Utilizing world-class dry-spinning fiber raw materials, high uniformity wet-formation process, and other advanced technologies, Winsun's products exhibit excellent physical properties, electrical insulation performance, long life, reliability, and have obtained RoHS certification.
Features
Z953 is a type of high temperature calendered insulation paper made of 100% meta-aramid fibers and it has flame retardant, high temperature resistance, low air permeability, high mechanical strength, good stiffness and good resin bonding.
1. Super light and high strength
2. High specific strength and high ration of stiffness (9 times higher than steel)
3. Excellent environment adaptability and electric insulating
4. Unique resilience and high stability
5. Outstanding corrosion resistance and flame resistance
Application Fields

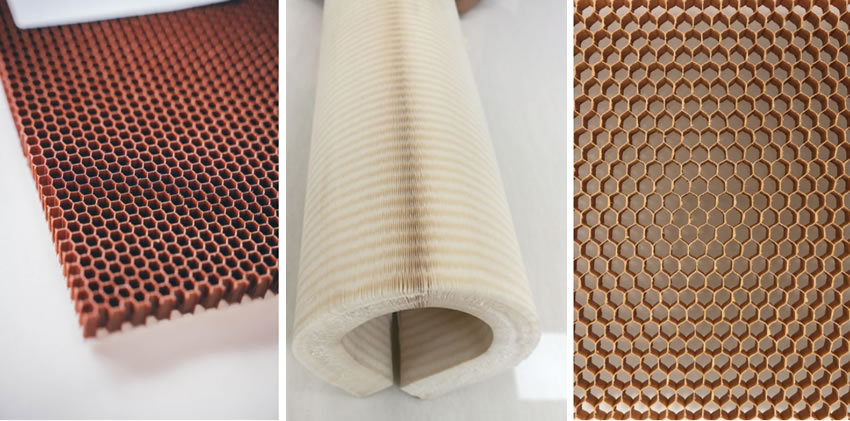

Z953 honeycomb paper can be used to make honeycomb core materials, widely used on antenna covers, radome, wall panels, cabin doors, floors and other aircraft structures of military aircraft, civil aircraft and other aircraft, and the spacecraft structures such as manned space station and launch vehicle satellite fairing. It can also be used in the preparation of skirts, roofs and interior parts of rail transit trains. It can also be applied in the fields of ship yachts and sports equipment. It is an ideal structural material in the fields of aerospace, rail transit and defense military industry.
Product Typical Properties
| Z953 Meta-aramid honeycomb paper | ||||||
Items | Unit | Typical value | Test methods | |||
| Nominal thickness | mm | 0.04 | 0.05 | 0.08 | - | |
| mil | 1.5 | 2 | 3 | |||
| Basis weight | g/m2 | 28 | 41 | 63 | ASTM D-646 | |
| Density | g/cm3 | 0.65 | 0.70 | 0.72 | - | |
| Tensile strength | MD | N/cm | 18 | 34 | 52 | ASTM D-828 |
| CD | 14 | 23 | 46 | |||
| Elongation at break | MD | % | 4.5 | 6 | 6.5 | |
| CD | 4 | 6.5 | 7 | |||
Elmendorf tearing resistance | MD | N | 0.65 | 1.2 | 1.5 | TAPPI-414 |
| CD | 0.75 | 1.6 | 1.8 | |||
Note: The data in the sheet are typical and cannot be used as the technical specification. Unless
Note: MD: Machine direction of paper ，CD: Cross machine direction of paper
otherwise stated, all data were measured under “Standard Conditions” (with the temperature of
23℃ and the relative humidity of 50% RH). The mechanical properties of aramid paper are
different in machine direction (MD) and cross machine direction (CD) . In some applications, the direction of the paper can be adjusted according to the needs to exert its best performance.
